Classification	USE	Example of application
For family use	Sauna, heating frame, desk heater, heating partition, wall heating, etc.
For electronic parts	Television, hair dryer, refrigerator, stand, air purifier.
Industrial use	Dryer, car paint drying, hardening room, anti-freeze thermal heater, car auxiliary heater, etc.
Medical use	Thermal mats, packs, medical capsules, etc.
Other etc	Heating system for marine logistics, and agricultural, livestock industries, thermal storage, etc.

Category	Criteria	Note
Quality of the material	PET	High Economics
Maximum heating temperature	136 ℃	Equipped with a heating element sensor
Appropriate temperature	40 ~ 100 ℃	Fire prevention function
Power consumption	0.1㎾ ~ 9.0㎾	220W / ㎡ ~
Weight	15Kg / Unit	20 feet
Tensile strength	18.0kgf / ㎟	188㎛ (Fabric standard)
Thermal Strain	0.5 ~ 1.5%	150℃ x 30 min

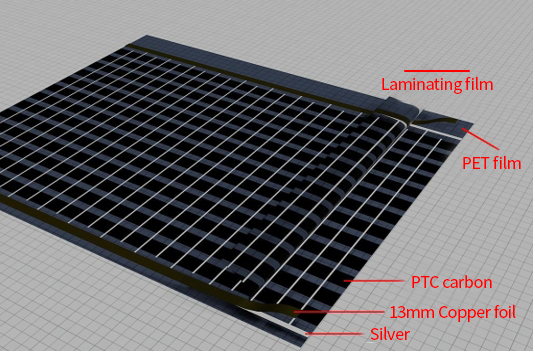

Product Features : It is developed as an independent cell structure and automatically reduces the temperature of the overheated area when local overheating occurs and does not affect other areas(Maintain existing temperature)
Minimum and maximum calorific values requested at specific temperatures(Example : 300W/1m2 at 10℃ ~ 9000W/1m2 at 10℃)
Film thickness : 0.2mm ~ 0.388mm or presenting a specific thickness
Film size : The width and length of the desired film (length : Less than 100 ~ 1,000 mm , 100 ~ 1,500M)
Working voltage (DC: 3.5 ~ 48V , AC: 100 ~ 600V)
Minimum Order Quantity : Discussion

Category	Electrical panel	Gas	Boiler(lamp oil)	LPG
Retail price	78.3 won	1,224 won	1,100 won	2,410 won
fuel consumption (month)	81KWH / month	Theoretical 100% 60(㎥)	Theoretical 100% 100(㎥)	Theoretical 100% 60(Kg)
Heating bills (per pyeong)	738 won	7,344 won	11,000 won	14,460 won
Heating bills (10pyeong)	7,380 won	73,440 won	110,000 won	146,000 won

Actual thermal efficiency is less than 30% due to high heat loss during heating.
Electric charges : General Electric Power(Gab, Contract power 300 ~ 1600 Kw or less) Voltage(220V, 380V), Notification standard of winter usage : January 1, 2012(Except for basic fee).
There are some variations depending on the wattage and the number of panels, 26~800 Watt per panel(300 X 500mm).
The usage time was assumed to be 8hours/day(30 days), and the temperature controller value was 80% applied.
Fuel consumption is based on 10 pyeong per month, and this data is intended to help consumers understand.
The above contents are somewhat different depending on the weather, external temperature, insulation structure, and measurement environment.

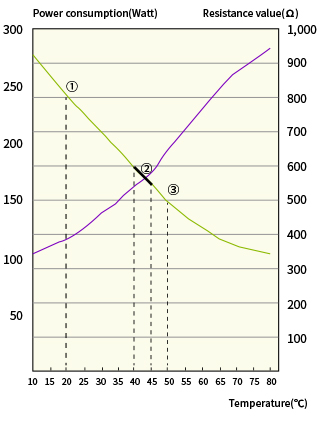

Time	Temperature	Power consumption	Note
starting current 1~60 minutes later	05 ~ 20 ℃ 20 ~ 85 ℃	5,000 Watt ± 10% 4,800 Watt ± 10%	Regardless of the thermostat, the planar heating element is reduced by its own automatic temperature control function.
after 10h	~ 90 ℃	4,800 Watt ± 10%
after 30h	120 ℃ More than	4,400 Watt ± 10%

Category	NHP Film	LPG Boiler	Gas Boiler	Oil Boiler	Electric Boiler
Cost of maintenance	26.80%	93.00%	80.30%	100.00%	40.00%
Life	Semipermanent	7~10 years	7~10 years	7~10 years	7 years
Thermal efficiency	98%	78%	78%	85%	85%
Safety	Satisfactory	Gas leak / explosion	Gas leak / explosion	Fire	Satisfactory
Noise / Smoke	None	Yes	Yes	Yes	None
Installation space	No boiler room required	Necessity	Necessity	Necessity	Necessity
Maintenance requirement	None	Occurrence	Occurrence	Occurrence	Occurrence
Radiant heat	Yes	Yes	Yes	Yes	Yes
Far infrared rays	Yes	None	None	None	None
